ScaleLegno Table Generator

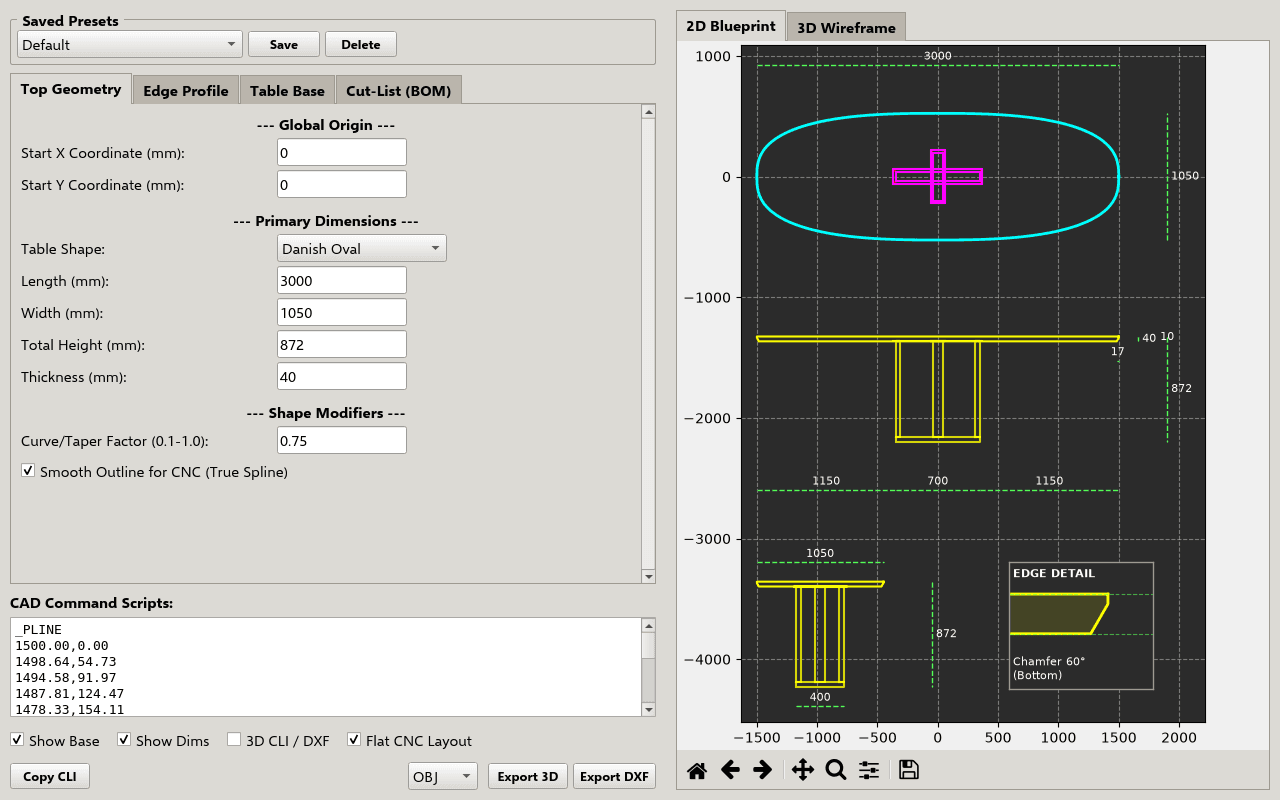

Parametric table designer for Windows: enter a few sizes, pick the top, edge and base, and ScaleLegno Table Generator draws the whole table in a live 2D blueprint and 3D wireframe while you type. Tops come as Danish Oval, Ellipse, Egg, Rectangle, Rounded Rectangle or Circle, with a straight, chamfered or filleted edge on the top, bottom or both. Bases include round, rectangular and polygon pedestals, U-legs, cross U-shape and matrix (spider), built as a solid panel, closed O-frame or open U-frame, with one base in the centre or two at the ends, plus recessed mounting plates with bolt holes. Copy CLI puts the CAD commands on your clipboard for any CAD program that accepts command scripts. Export DXF writes the 2D views, an optional 3D model and a flat CNC layout of the parts, with the mounting-plate bolt holes already in place, for any CAD program that opens DXF, and Export 3D writes OBJ or STL(Beta). The cut-list lists every part with your materials and exports to CSV or an HTML report. Save your setups as presets. Pilot holes, plate pockets, sheet nesting, NC/MPR machine files and batch runs are in Table Generator Pro. Windows 10/11, 64-bit: download the zip, extract it and run ScaleLegno_TableGenerator.exe. No install and no Python needed.
